Onatpan Red – Fire Resistant
Red Fire EPD Certificate
Onatpan Red 2025 TSE Certificate
Fire Resistance Test Report
Onatpan Red Trademark Registration Certificate

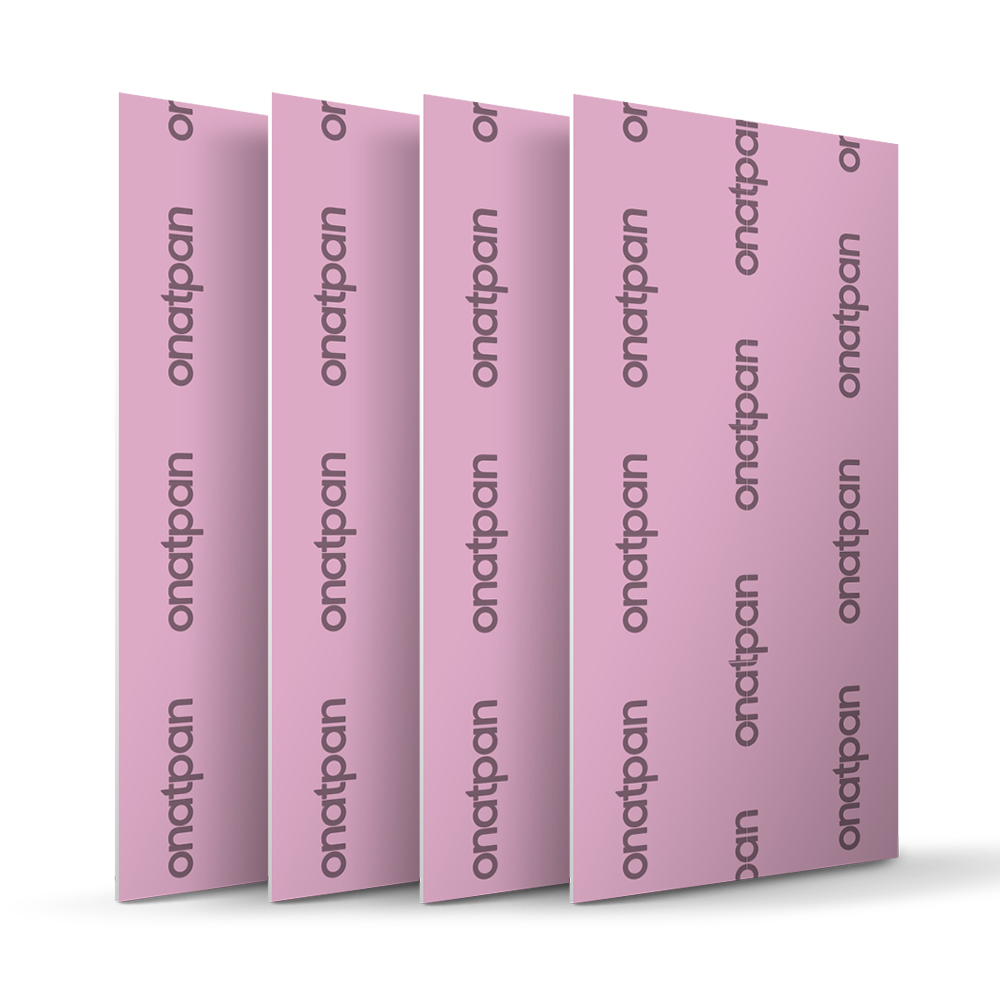

ONATPAN Red is a plasterboard coated with double-sided special paper using natural gypsum stone and advanced technology, flexible, light, with improved workability and increased fire resistance properties. It is a plasterboard that can be used as a cladding in columns and beams, and is recommended to be used in areas where high fire resistance is required. It provides easy and fast application opportunity.
It provides an aesthetic and natural appearance by being used in construction decoration works.
It provides a comfortable environment.
APPLICATION
ONATPAN Red is applied on metal or wooden frame with screws,
On the existing wall, it is applied with YAPONAT adhesive plaster.
Thanks to its thinned long edges, a smooth and regular surface is obtained by using DERZONAT joint filler plaster in the joint areas.
STORAGE
It should be stored on a clean and flat surface, in a way that it will not come into contact with the ground, in an environment protected from water and moisture.
ONATPAN Red is a plasterboard with increased fire resistance property, coated with double-sided special paper using natural gypsum stone and advanced technology.
Yangının Dayanım Test Raporu
Red Fire EPD Certificate
Onatpan Red 2025 TSE Certificate
Fire Resistance Test Report
Onatpan Red Trademark Registration Certificate
| Width (mm) | Length (mm) | Packaging | |
| ONATPAN 9,5 mm | 1200 | 2000 | 30-90 Packaging |
| 1200 | 2200 | 30-90 Packaging | |
| 1200 | 2400 | 30-90 Packaging | |
| 1200 | 2500 | 30-90 Packaging | |
| 1200 | 3000 | 30-90 Packaging | |
| Width (mm) | Length (mm) | Packaging | |
| ONATPAN 12,5 mm | 1200 | 2000 | 20-80 Packaging |
| 1200 | 2200 | 20-80 Packaging | |
| 1200 | 2400 | 20-80 Packaging | |
| 1200 | 2500 | 20-80 Packaging | |
| 1200 | 3000 | 20-80 Packaging | |
| Width (mm) | Length (mm) | Packaging | |
| ONATPAN 15 mm | 1200 | 2000 | 20-70 Packaging |
| 1200 | 2200 | 20-70 Packaging | |
| 1200 | 2400 | 20-70 Packaging | |
| 1200 | 2500 | 20-70 Packaging | |
| 1200 | 3000 | 20-70 Packaging | |
| Width (mm) | Length (mm) | Packaging | |
| ONATPAN 18 mm | 1200 | 2000 | 20-50 Packaging |
| 1200 | 2200 | 20-50 Packaging | |
| 1200 | 2400 | 20-50 Packaging | |
| 1200 | 2500 | 20-50 Packaging | |
| 1200 | 3000 | 20-50 Packaging |
| Nominal Thickness | 9,5 mm | 12,5 mm | 15 mm | 18 mm |
| Average Weight (Kg/m2) | ≤ 8,50 | ≤ 10,00 | ≤ 12,50 | ≤ 15,00 |
| Fracture Load in Bending (Short Edge Direction) (N) | ≥ 228 | ≥ 300 | ≥ 360 | ≥ 432 |
| Fracture Load in Bending (Long Side Direction) (N) | ≥ 551 | ≥ 725 | ≥ 870 | ≥ 1044 |
| Edge Type | Square Edge, Tapered Edge | |||
| Thermal Conductivity (W/m.K) | 0,24 | |||
| Core Cohesion (Minutes) | ≥ 15 | |||
| Coefficient of Resistance to Water Vapor Passage | 10 | |||
| Reaction to Fire Class | A2-s1-d0 | |||
| Related Standard | EN 520 + A1 Temmuz 2010 | |||
ONATPAN Red is a plasterboard coated with double-sided special paper using natural gypsum stone and advanced technology, flexible, light, with improved workability and increased fire resistance properties. It is a plasterboard that can be used as a cladding in columns and beams, and is recommended to be used in areas where high fire resistance is required. It provides easy and fast application opportunity.
It provides an aesthetic and natural appearance by being used in construction decoration works.
It provides a comfortable environment.
APPLICATION
ONATPAN Red is applied on metal or wooden frame with screws,
On the existing wall, it is applied with YAPONAT adhesive plaster.
Thanks to its thinned long edges, a smooth and regular surface is obtained by using DERZONAT joint filler plaster in the joint areas.
STORAGE
It should be stored on a clean and flat surface, in a way that it will not come into contact with the ground, in an environment protected from water and moisture.
